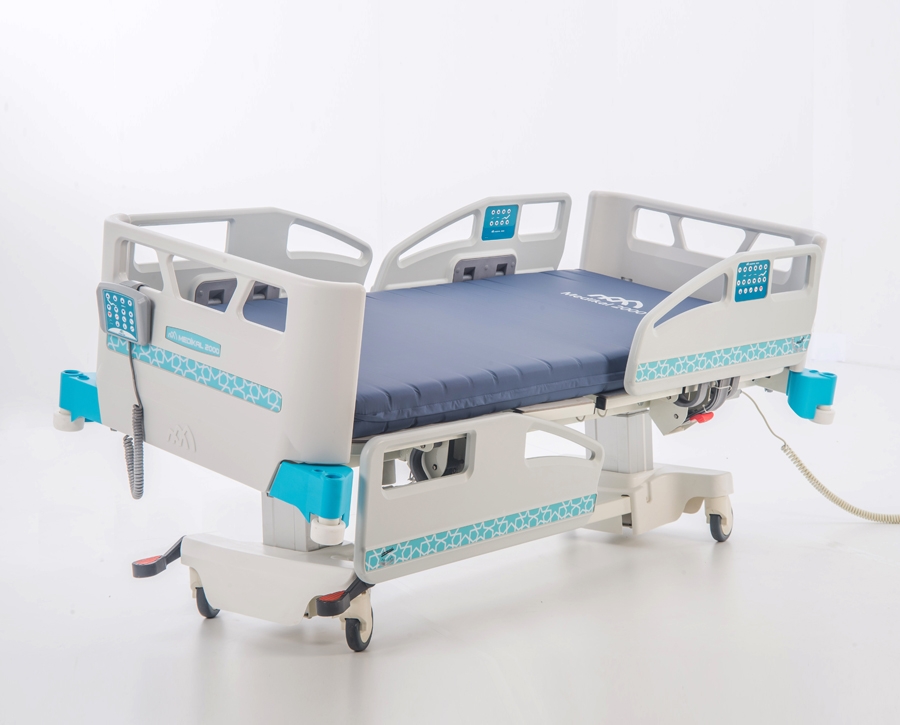

Hospital Bed (Plus T)

Description

Metal parts coated with zinc phosphate and varnished with an electrostatic epoxy-polyester powder
Easily cleanable, four-piece compact laminate lying surface.
X-Ray permeable lying surface
Headboard and footboard made of mono-block PP materials
Side rails made of mono-block PP materials
IV pole inserts and protective bumpers on all four corners
IV pole and drainage hook
DC motors are protected from over-current and need no lubrication
High strength hinges made of composite materials
Minimum IPX4 protection
150 mm diameter castors with a directional lock, central locking system and capable of turning 360°

Patient control panel on the side rail-inner and Nurse control panel on the side rail-outer
Electronic adjustments of the backrest, leg rest, height-up&down and fowler positions by using Patient control panel
Remote control panel for Nurses
Electronic adjustments of the backrest, leg rest, height-up&down, Trendelenburg, Reverse Trendelenburg, Tilt and Reverse Tilt positions by using the Nurse control panel
Manually and Electronically CPR (Reset)
Equipped with powerful Column Motors
Two-piece ABS plastic covered Lower Chassis
Back up battery for non-stop operation in case of power failure
Leakage currents & ground fault protection
28 Density Mattress with 12 cm thickness suitable for lying surface

Width (Over all)	Lenght (Over all)	Height Min.	Height Max.	Lying Surface	Backrest Angle	Legrest Angle	Trendelenburg Angle	Reverse Trendelenburg Angle	Lateral Tilt Angle	Reverse Lateral Tilt Angle	Safety Working Capacity
103,5 cm	212,5 cm	52 cm	92 cm	190×85 cm	70^o	30^o	15^o	15^o	12^o	12^o	230 kg
